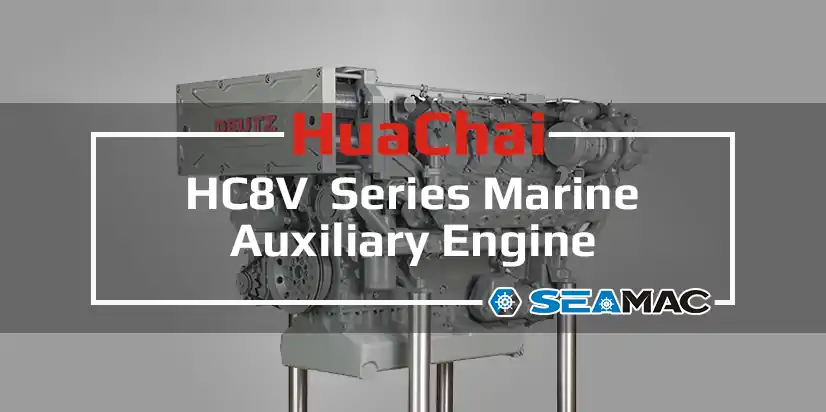

HuaChai Deutz HC8V598/18D Auxiliary Engine

Huachai Deutz HC8V598/18D Marine Auxiliary Engine uses a 8 Cylinder design, a 8 Cylinder engine is usually suitable for larger vehicles or applications that require higher torque and power output.

HC8V598/18D has a displacement of 15.88 L, larger displacement means better acceleration performance and handling stability, especially suitable for heavy-duty or high-load working environments.

The Engine has a maximum power output of 440 kW, enough to drive large vehicles or provide high performance, which is important for applications that require quick acceleration or long distance runs.

We provide all customers with full life cycle services from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from troubleshooting to maintenance technical support.

Advantages of HC8V598/18D

  • HC8V598/18D Marine Auxiliary Engine adopts advanced combustion technology and fuel management system, which can effectively control fuel consumption. Compared with other engines of the same level, it can achieve higher fuel economy and lower operating costs under the same workload.

  • The Engine is assembled with Deutz brand technology and craftsmanship, as well as high-quality components, ensuring its high reliability and long-lasting durability. It has undergone strict testing and quality control, and can adapt to various harsh working conditions and environments, providing stable and reliable performance.

  • The HC8V598/18D Marine Auxiliary Engine is designed with ease of maintenance in mind, facilitating routine repair and maintenance operations. It adopts a modular design, which makes the parts easier to remove and replace, reducing maintenance time and cost. In addition, Detz also provides a wide range of after-sales service and spare parts support, which is convenient for users to carry out maintenance and maintenance work.

  • The Engine uses advanced combustion technology and emission control system to meet strict emission standards. It uses high-efficiency turbochargers and advanced injection systems to make combustion more complete and reduce pollutant emissions.

Technical Specifications

Engine Model:HC8V598/18D
Net Weight:1300 kg
Rated Power / Speed:440 kW @ 1800 RPM
Min.Stable Speed:550 RPM
Compression Ratio:16.5 : 1
Aspiration:Supercharged & Inter-Cooled
Basic Turck(L * W * H):1727 mm * 1119 mm * 1204 mm
Combustion Method:Direct Injection Type
Fuel Transfer Pump:Plunger
Displacement:15.88 L
Bore * Stroke:132 mm * 145 mm
Number of Cylinders:8
Lead Time:15-30 Working Days
Payment Terms:T/T ,L/C

Coming Soon

Coming Soon

Coming Soon

Model

Rated Power/Speed

Displacement

Number of Cylinders

Aspiration

HC8V494/15D363 kW @ 1500 RPM15.88 L8Supercharged & Inter-Cooled
HC8V539/15D396 kW @ 1500 RPM15.88 L8Supercharged & Inter-Cooled
HC8V568/15D418 kW @ 1500 RPM15.88 L8Supercharged & Inter-Cooled
HC8V598/15D440 kW @ 1500 RPM15.88 L8Supercharged & Inter-Cooled
HC8V539/18D396 kW @ 1800 RPM15.88 L8Supercharged & Inter-Cooled
HC8V568/18D418 kW @ 1800 RPM15.88 L8Supercharged & Inter-Cooled
HC8V598/18D440 kW @ 1800 RPM15.88 L8Supercharged & Inter-Cooled
HC8V653/18D480 kW @ 1800 RPM15.88 L8Supercharged & Inter-Cooled
——END——

General Infomation of HuaChai Deutz HC8V598/18D Marine Auxiliary Engine

Engine ModelHC8V598/18DEngine TypeV-Type, Four Stroke
Rated Power440 kWRated Speed1800 RPM
Displacement15.88 LNet Weight1300 kg
AspirationSupercharged & Inter-CooledNumber of Cylinders8
Bore * Stroke132 mm * 145 mmOverall Size (L * W * H)1727 mm * 1119 mm * 1204 mm
Combustion MethodDirect Injection TypeCompression Ratio16.5:1
Max.Burst Pressure155 MPaMin.Stable Speed550 RPM
——END——

Technical Parameters of HuaChai Deutz HC8V598/18D Marine Auxiliary Engine

Cylinder ArrangementV-90 °Angle
Fuel FilterOil-Water Separator + Fine Filter
Fuel Transfer PumpPlunger
Fuel Injection PumpIn-Line Integral
Governor MethodMechanical or Electronic
Injector Opening Pressure29 MPa
Lubrication MethodPressure lubrication + Splash lubrication
Oil FilterFine Filter
Flywheel Shell SpecificationsSAE1
Cylinder ConstructionOne Cylinder-One Head
Oil Quality GradeCF-4 and Higher Grade Engine Oil
Cooling MethodHeat Exchanger + Water Intercooler
Coolant Maximum Temperature103 ℃
Starting ModeElectric Start
Charging Generator28.5VX55A
——END——

Coming Soon

Coming Soon

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
