Rated Power: 181 kW@ 1500RPM
Fuel Pump: N / A
Governor: N / A
Aspiration: Turbocharged
Emission Standard: N/A

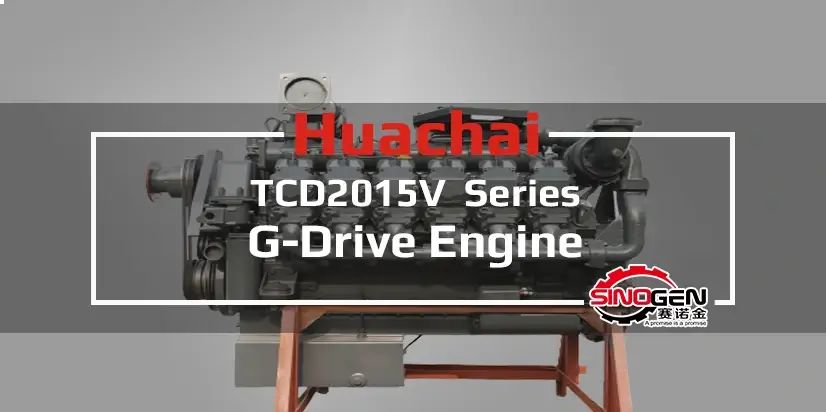

Huachai Deutz TCD2015V Generator Drive Engine
Huachai Deutz TCD2015V series G-Drive engine is a four-stroke turbocharged intercooled engine with a displacement of 15.874 liters. It is capable of generating up to 550 kW at 1500 RPM, making it suitable for a wide range of industrial and commercial applications. It also features an electronic governor system for precise control of engine speed and output. The engine also features a high-pressure common rail fuel injection system that helps improve fuel efficiency and reduce emissions.
Some key features of Huachai Deutz TCD2015V series G-Drive engines include high power density, low fuel consumption and reduced emissions. It also has a compact design for easy installation and maintenance.
Huachai Deutz TCD2015V series G-Drive engine is a reliable and efficient choice for users who need a powerful and durable diesel engine for generator applications.
We provide all customers with full life cycle services from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from troubleshooting to maintenance technical support.
General Specifications of TCD2015V Series
| Engine Type: | 6 / 8 Cylinders |
| Displacement: | 11.906 / 15.874 L |
| Rated Speed: | 1500 RPM |
| Emission Standard: | 2729 – 5660 m3/h |
| Fuel System: | N/A |
| Standby Power: | 181 – 422 kW @ 1500 RPM |
| Prime Power: | N/A |
| Bore * Stroke: | 132 mm * 145 mm |
| Wet Weight: | 1020 – 1245 kg |
| Packing Size(L * W * H): | N/A |
Engine Model | Rated Power | Specification | Engine Model | Rated Power | Specification | ||
| TCD2015V06-LA-G1 | 181 kW @ 1500 RPM | 50 Hz @ 1500 RPM | TCD2015V06-LA-G2 | 204 kW @ 1500 RPM | 50 Hz @ 1500 RPM | ||
| TCD2015V06-LA-G3 | 227 kW @ 1500 RPM | 50 Hz @ 1500 RPM | TCD2015V06-LA-G4 | 259 kW @ 1500 RPM | 50 Hz @ 1500 RPM | ||
| TCD2015V06-LA-G5 | 385 kW @ 1500 RPM | 50 Hz @ 1500 RPM | TCD2015V06-LA-G6 | 307 kW @ 1500 RPM | 50 Hz @ 1500 RPM | ||
| TCD2015V06-LA-G7 | 327 kW @ 1500 RPM | 50 Hz @ 1500 RPM | TCD2015V08-LA-G1 | 345 kW @ 1500 RPM | 50 Hz @ 1500 RPM | ||
| TCD2015V08-LA-G2 | 363 kW @ 1500 RPM | 50 Hz @ 1500 RPM | TCD2015V08-LA-G3 | 381 kW @ 1500 RPM | 50 Hz @ 1500 RPM | ||
| TCD2015V08-LA-G4 | 409 kW @ 1500 RPM | 50Hz @ 1500 RPM | TCD2015V08-LA-G5 | 422 kW @ 1500 RPM | 50 Hz @ 1500 RPM | ||
| ——END—— | |||||||
Huachai Deutz TCD2015V Series G-Drive Engine
This list including all models of Huachai Deutz TCD2015V Series G-Drive Engine.
Click here to find G-Drive engines by type (Engine Speed).
HuaChai Deutz TCD2015V06-LA-G2 G-Drive Engine
Rated Power: 204 kW@ 1500RPM
Fuel Pump: N / A
Governor: N / A
Aspiration: Turbocharged
Emission Standard: N/A
HuaChai Deutz TCD2015V06-LA-G3 G-Drive Engine
Rated Power: 227 kW@ 1500RPM
Fuel Pump: N / A
Governor: N / A
Aspiration: Turbocharged
Emission Standard: N/A
HuaChai Deutz TCD2015V06-LA-G4 G-Drive Engine
Rated Power: 259 kW@ 1500RPM
Fuel Pump: N / A
Governor: N / A
Aspiration: Turbocharged
Emission Standard: N/A
HuaChai Deutz TCD2015V06-LA-G5 G-Drive Engine
Rated Power: 385 kW@ 1500RPM
Fuel Pump: N / A
Governor: N / A
Aspiration: Turbocharged
Emission Standard: N/A
HuaChai Deutz TCD2015V06-LA-G6 G-Drive Engine
Rated Power: 307 kW@ 1500RPM
Fuel Pump: N / A
Governor: N / A
Aspiration: Turbocharged
Emission Standard: N/A
HuaChai Deutz TCD2015V06-LA-G7 G-Drive Engine
Rated Power: 327 kW@ 1500RPM
Fuel Pump: N / A
Governor: N / A
Aspiration: Turbocharged
Emission Standard: N/A
HuaChai Deutz TCD2015V08-LA-G1 G-Drive Engine
Rated Power: 345 kW@ 1500RPM
Fuel Pump: N / A
Governor: N / A
Aspiration: Turbocharged
Emission Standard: N/A
HuaChai Deutz TCD2015V08-LA-G2 G-Drive Engine
Rated Power: 363 kW@ 1500RPM
Fuel Pump: N / A
Governor: N / A
Aspiration: Turbocharged
Emission Standard: N/A
HuaChai Deutz TCD2015V08-LA-G3 G-Drive Engine
Rated Power: 381 kW@ 1500RPM
Fuel Pump: N / A
Governor: N / A
Aspiration: Turbocharged
Emission Standard: N/A
HuaChai Deutz TCD2015V08-LA-G4 G-Drive Engine
Rated Power: 409 kW@ 1500RPM
Fuel Pump: N / A
Governor: N / A
Aspiration: Turbocharged
Emission Standard: N/A
HuaChai Deutz TCD2015V08-LA-G5 G-Drive Engine
Rated Power: 422 kW@ 1500RPM
Fuel Pump: N / A
Governor: N / A
Aspiration: Turbocharged
Emission Standard: N/A
