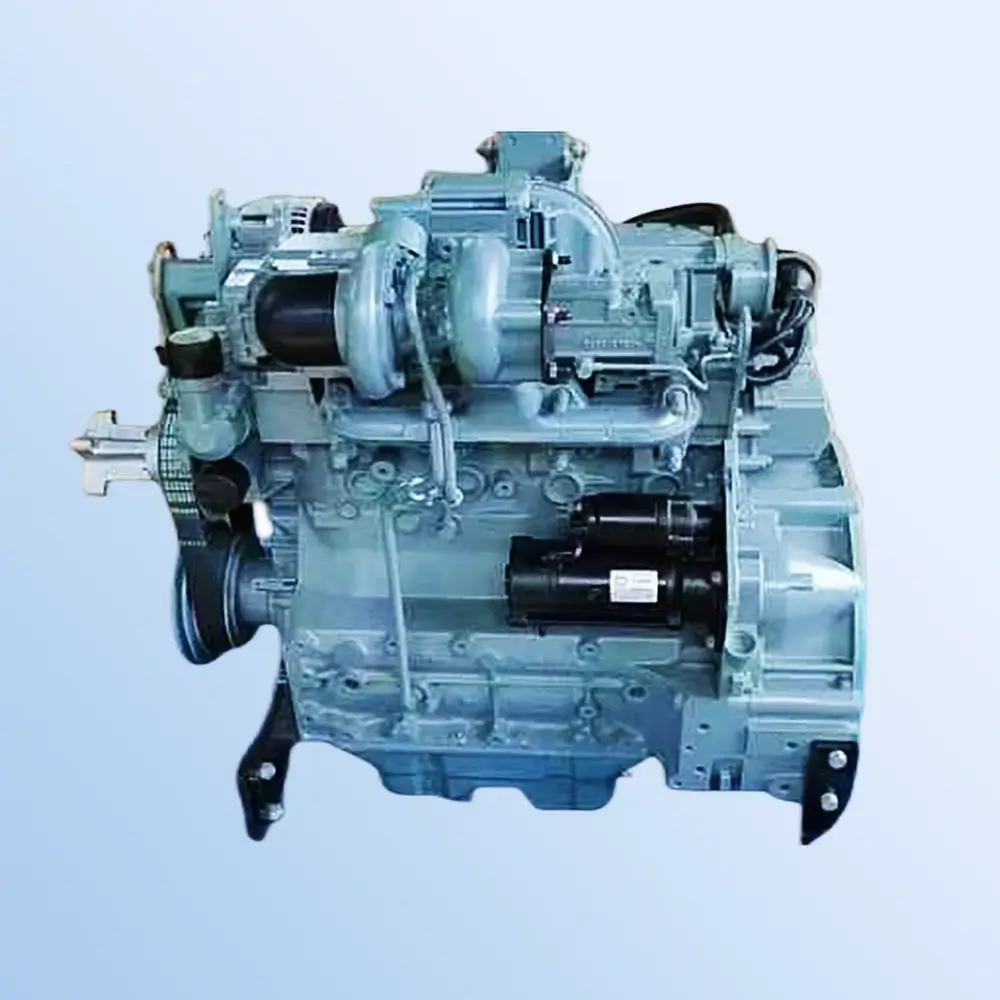

DaLian Deutz BF4M2012C-G1-B Generator Drive Engine

Dalian Deutz BF4M2012C-G1-B generator drive engine is a light generator with a power of 79kW at a frequency of 60hz at 1800 rpm. It also has a turbocharger function so that it can operate under high load conditions can apply.

The engine is a modern water-cooled in-line 4-cylinder with 3 separate mounting options for power take-offs driven through the wheels. At the same time, there are maintenance points on the side of the engine for easy access.

The BF4M2012C-G1-B engine has the characteristics of high efficiency. By adopting advanced combustion technology and fuel injection system, the engine can achieve higher thermal efficiency and low emission. This not only reduces the cost of use, but also helps to reduce the negative impact on the environment.

In addition, the engine also has the advantage of low noise. It adopts high-quality sound insulation materials and noise reduction design, so that the noise during operation is lower than the national standard. This makes the engine more suitable for use in noise-sensitive environments such as urban workplaces.

Advantages of DaLian Deutz BF4M2012C-G1-B Generator Drive Engine

  • Efficient and fuel-saving: the cylinder bore adopts a platform mesh honing design; the perfect geometric structure effectively prevents oil leakage.

  • adopts advanced technologies such as new piston ring components and gasket crimping molding to reduce oil loss.

  • Manufacturing process: The cylinder block and cylinder head adopt integrated design, which eliminates the occurrence of engine water leakage and oil leakage.

  • The parts are about 40% less than other similar engines, and the failure rate is greatly reduced.

  • Strong power: adopts Holset supercharger with integral wastegate valve, low-speed response and strong power.

  • Advanced design and high-quality manufacturing, adaptable to severe operating conditions, high strength, and reliable operation under heavy load.

Technical Specifications

Engine Model:BF4M2012C-G1-B
Intake Method:Turbocharged
Arrangenment:Lnline
Displacement:4.04 L
Rated Power:79 kW @ 1800 RPM
Bore*Storke:101 mm * 126 mm
Compression Ratio:19
Mean Effective Pressure:14.5 Bar
Piston Speed:7.56 m/s
Bare Weight:405 kg
Oil Type:TRO199-99-3002/6
Lead Time:15-30 Working Days
Payment Terms:T / T , L / C

coming soon

Engine Model

Advertised Power/Speed (kW/RPM)

Peak Torque/Speed (N.m/RPM)

Aspiration

BF4M2012-G1-A54/1500485/1500Turbocharged
BF4M2012C-G1-A71/1500460/1500Turbocharged
BF4M2012C-G2-A85/1500525/1500Turbocharged
BF4M2012-G1-B63/1800441/1800Turbocharged
BF4M2012C-G1-B79/1800414/1800Turbocharged
BF4M2012C-G2-B99/1800356/1800Turbocharged
——END——

General Infomation of DaLian Deutz BF4M2012C-G1-B Generator Drive Engine

Engine ModelBF4M2012C-G1-BStandby Power88 kW
Rotation Speed1800 RPMFan Power Consumption8.3 kW
Specification60 HzNet Power79.7 kW
Power StandardLTPPower Output90 KVA
Power LevelN / ARated Power79 kW
Emission StandardsEuro IIContinuous Power75 kW

Installation Data of DaLian Deutz BF4M2012C-G1-B Generator Drive Engine

Intake methodTurbocharged
Cylinder number4 Cylinder
ArrangementLnline
Displacement4.04 L
Bore * Stroke101 mm * 126 mm
Compression Ratio19
Mean Effective Pressure14.5 Bar
Piston Speed7.56 m / s
Bare Weight405 kg
Oil TypeTR0199-99-3002/6
Oil Consumption0.15

—END—

Engine Performance Data ofDaLian Deutz BF4M2012C-G1-B Industrial Engine

Standby Power88 kWMaximum Intake Resistance25 Mbar
Fan Power Consumption8.3 kWCombustion Air Volume335 m³ / h
Net Power79.7 kWMaximum Exhaust Back Pressure30 Mbar
Power Output90 kVAMaximum Exhaust Temperature540 ℃
Rated Power79 kWExhaust Flow Rate (At High Temperature)1071 m³ / h
Continuous Power75 kWExhaust Flange/Pipe DiameterN / A
——END——

System Technical Data of  DaLian Deutz BF4M2012C-G1-B Generator Drive Engine

Fuel System25% load5.8 L / h
50% load10.1 L / h
75% load14.8 L / h
100% load20 L / h
25% load248 g/kWh
50% load218 g/kWh
75% load213 g/kWh
100% load215 g/kWh
Cooling SystemCoolant Outlet Maximum Continuous Temperature105
Maximum Continuous Flow Resistance Of Coolant0.22 Bar
Coolant Maximum Temperature (Alarm Value)108
Coolant Maximum Temperature (Shutdown Value)110
Thermostat Opening Temperature83
Thermostat Fully Open Temperature98
Pump Delivery Capacity8.6 m³ / h
Minimum Pressure Before The Pump0.3 Bar
Temperature After Intercooling40
Coolant Capacity (Engine)6 L
Coolant Capacity (Including Cooling System)15.9 L
Maximum Air Temperature (Fan Supply Air)60
Fan Power Consumption8.3 kW
Cooling Air Flow2 Mbar
Cooling Air Pressure Drop6500 m³ / h
Heat Dissipation (Engine Radiator)42.3 kW
Heat Dissipation (Engine Intercooler)13 kW
Heat Dissipation (Convection)9 kW
Electrical SystemVoltage24 V
Starter Power6 kW
Alternator Output35 A
Battery2 * 100 Ah
—END—

coming soon

coming soon

coming soon

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
